      Comprehensive chemical characterization of the aerosol generated by Tobacco Heating System

      Philip Morris International (PMI) has conducted comprehensive chemical characterization of the aerosol generated by the Tobacco Heating System (THS). Researchers used untargeted screening to further confirm significantly reduced levels of harmful chemicals in THS aerosol compared with those found in cigarette smoke. Learn how this research provides critical insights into the comparative chemical profiles of THS aerosol and cigarette smoke, supporting its potential as a reduced-risk alternative for adult smokers.

      TIME TO READ: 5 MIN

      A thorough analysis of THS aerosol

      Scientifically substantiated heated tobacco products (HTPs) heat tobacco instead of burning it, resulting in the production of lower levels of harmful and potentially harmful constituents (HPHCs). For THS, the levels of HPHCs in the aerosol are reduced on average by 90-95% compared with those found in the smoke of a 3R4F cigarette designed for scientific research. Those measurements focused on lists of constituents by health authorities such as the World Health Organization (WHO) (9 chemicals on priority list), the U.S. Food and Drug Administration (FDA) (18 chemicals excluding nicotine), and the Agency for Research on Cancer (IARC) (12 group 1 carcinogens). In more recent research, described here, we expanded our focus with the aim of identifying all the chemicals present in the THS aerosol, both known and unknown, using a suite of untargeted analytical methods. Thanks to this approach, close to 100% of the chemicals present in THS aerosol at a level of 100 ng/stick or above have been identified.



      Aerosol generation and sample collection

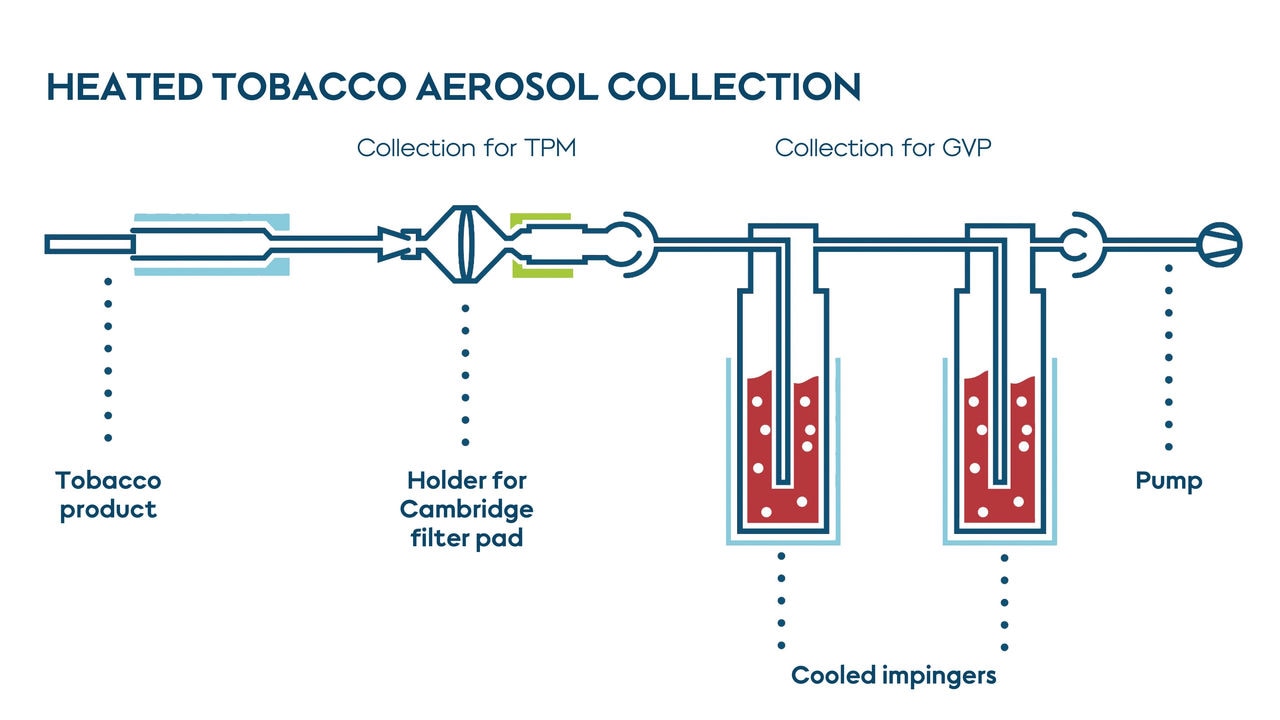

      heated tobacco aerosol collection

      General schematic for trapping the particulate and gas-vapor phase of 3R4F cigarette smoke and THS aerosol. (TPM: total particulate matter; GVP: gas-vapor phase). Watch our demo to get a closer look at the Cambridge filter pads after collection of cigarette smoke or THS aerosol.

      We generated cigarette smoke from the reference cigarette 3R4F and aerosol from THS using a linear smoking machine, according to the Health Canada intense smoking regimen. The smoke/aerosol samples were collected and prepared using simple processes that could be completed quickly, in order to minimize the opportunity for chemical reactions to occur after sample collection. The particulate phase was collected by passing the smoke or aerosol through a Cambridge (glass fiber) filter pad. The gas-vapor phase passing through the filter pad was trapped by using a series of two micro impingers containing solvents, which were cooled to below room temperature.



      Untargeted screening of smoke and aerosol compounds

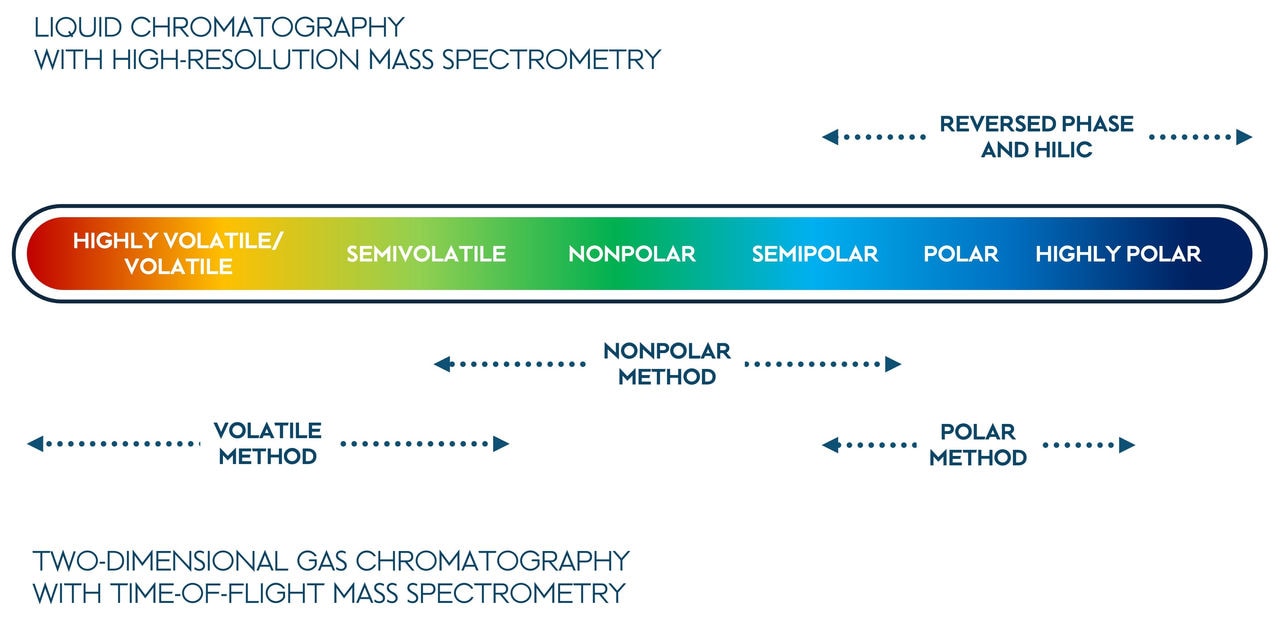

      Illustration of the suite of untargeted methods used to cover the anticipated chemical space for tobacco smoke and aerosol. HILIC stands for hydrophilic interaction liquid chromatography.

      Illustration of the suite of untargeted methods used to cover the anticipated chemical space for tobacco smoke and aerosol. HILIC stands for hydrophilic interaction liquid chromatography.

      We used untargeted screening in order to maximize the number of chemical constituents detected in the aerosol. An untargeted analysis looks for any chemicals present in the sample, both known and unknown, thereby maximizing the number detected. In contrast, using targeted analysis, scientists look for certain known chemicals only, and, as a result, do not measure other chemicals present in the samples. We developed and used several overlapping analytical methods, using both gas and liquid chromatography, to cover as many chemicals as possible in the chemical space related to heated tobacco aerosol and cigarette smoke. Liquid chromatography with high-resolution mass spectrometry methods were used to detect highly polar compounds, and two-dimensional gas chromatography with time-of-flight mass spectrometry methods were used to additionally detect volatile and nonpolar compounds.

      Using these methods, we expect that only a small minority of constituents have been overlooked, such as highly reactive short-lived compounds. For example, these methods did not detect formaldehyde, a highly reactive carbonyl known to be present in both cigarette smoke and heated tobacco aerosol.

      We reported substances present at or above 100 ng per cigarette or tobacco stick. This reporting threshold was chosen as a compromise between the number of compounds identified, and the overall effort required for their identification. Since it is known that the number of compounds increases exponentially as their concentrations decrease, the effort required to identify a significantly increased number of compounds using a threshold below 100 ng/stick was not feasible. In addition, we have estimated that by applying a reporting threshold at 100 ng/stick, less than 1% of the total mass determined by untargeted screening has been overlooked.

      Among the compounds present in the aerosol produced by THS, the identity of more than 96% of the compounds by mass were confirmed using reference standards.

      Among the compounds present in the aerosol produced by THS, the identity of more than 96% of the compounds by mass were confirmed using reference standards.

      A total of 529 compounds with concentrations ≥ 100 ng/stick were identified in the THS aerosol by untargeted screening and were estimated to constitute close to 100% of the total determined aerosol mass. Water, nicotine, and glycerin, which are highly abundant in the THS aerosol, were determined using separate targeted measurements and were not considered during the untargeted screening process, bringing the total number of measured constituents to 532.

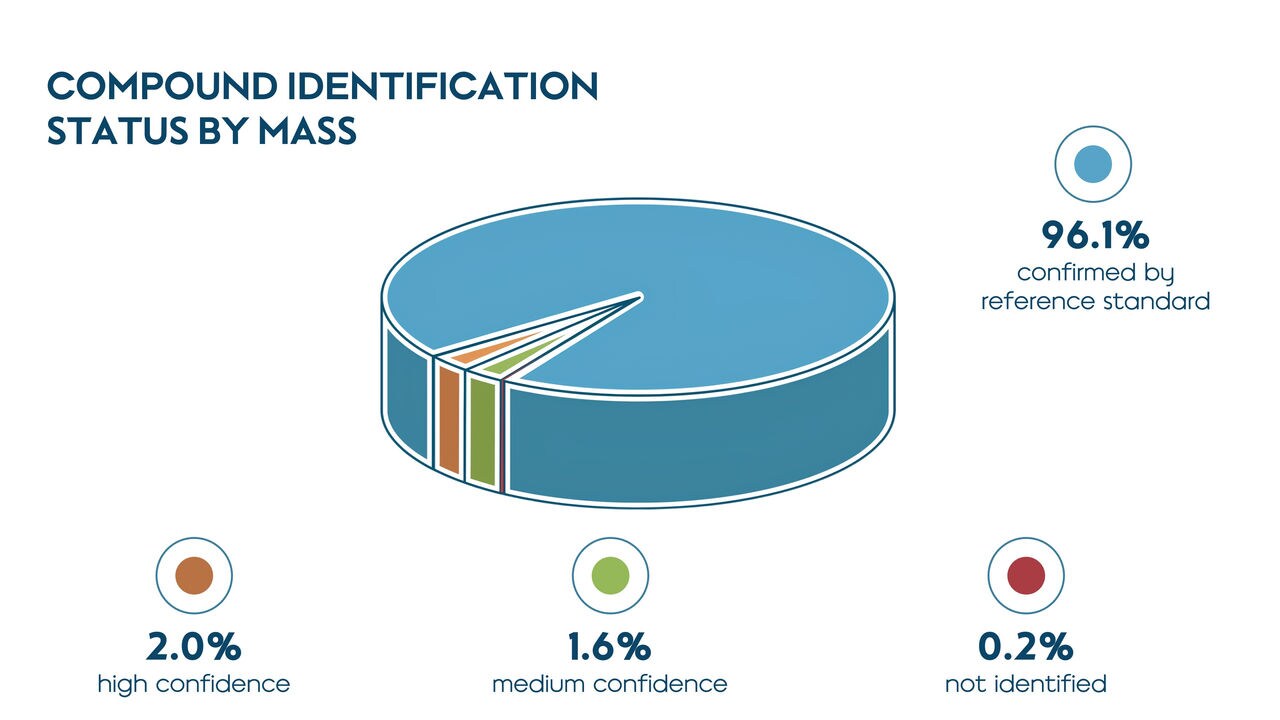

      Compounds making up 96.1% of aerosol mass confirmed by reference standard

      Of the 529 compounds, 363 (68.6%) were found only in the particulate phase, and 127 (24.0%) were found only in the gas-vapor phase. Further, 39 (7.4%) compounds were present in both the particulate and gas-vapor phases. Although we did not fully characterize the composition of 3R4F reference cigarette smoke, we have estimated that there are 10-fold fewer chemical constituents present in THS aerosol and can confirm that these 529 compounds are also part of the 6,000+ compounds known to be present in cigarette smoke.

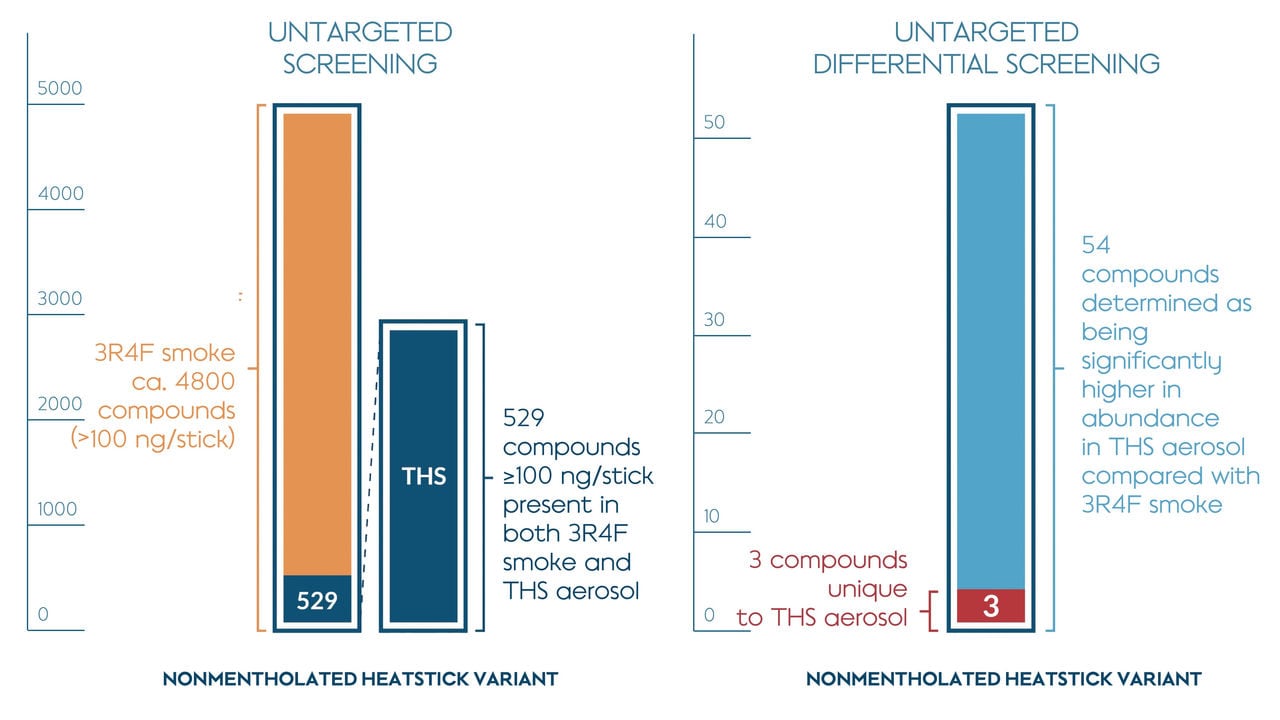

      Results of the untargeted screening and untargeted differential screening.

      Results of the untargeted screening and untargeted differential screening. Left: More than 96% of the total mass characterized by untargeted screening, representing over 80% of the total number of compounds identified, was confirmed with reference standards. Right: The untargeted differential screening approach does not apply a reporting threshold, and focuses on identifying all compounds that are higher in abundance in the aerosol of THS compared with 3R4F smoke.

      The majority of these 529 compounds were present in the THS aerosol at lower concentrations than in 3R4F cigarette smoke. Only a minority of compounds were present in THS aerosol at higher concentrations than those measured in the smoke of the 3R4F reference cigarette.

      By reporting only compounds at concentrations above 100 ng/stick, it is possible to overlook compounds that might represent a toxicological concern at concentrations below this threshold. We previously used the same methods reported in this publication for a differential screening approach, which does not apply a concentration reporting threshold. In that case, differential screening refers to the identification of compounds that are more abundant in THS aerosol, compared with cigarette smoke. The study identified three compounds lower than 100 ng/stick that were unique to the nonmentholated THS aerosol (cis-sesquisabinene hydrate at 61 ng/stick; ethyl dodecanoate at 23 ng/stick; and benzenemethanol, 4-hydroxy at 11 ng/stick).  These compounds, along with those found to be more abundant in THS aerosol than cigarette smoke, were submitted to toxicological evaluation. Read the paper for more information on untargeted characterization of the aerosol of the two mentholated versions of THS that were also assessed in this study.

      Four compounds that were not present in any list of priority toxicants were highlighted to be of toxicological concern, namely glycidol, 3-monochloropropane-1,2-diol (3-MCPD), 2-furanmethanol, and furfural; however, the levels of these chemicals present in the aerosol were below the level of concern. Notably, the U.S. FDA assessed these findings and stated that “Although some of the chemicals are genotoxic or cytotoxic, these chemicals are present in very low levels and potential effects are outweighed by the substantial decrease in the number and levels of HPHCs found in [combusted cigarettes]”.



      Combustion’s impact on the difference between THS aerosol and cigarette smoke

      More recently, we conducted another research study using untargeted analytical methods to identify any differences in aerosol or smoke chemistry resulting from heating versus burning. We focused on compounds unique to HTP aerosol and those not unique but found in greater quantities in HTPt aerosol as a result of heating rather than burning. This work was done by preparing specifically designed cigarettes and THS tobacco sticks in a way that would avoid confounding factors:

      • The test products were prepared using the same tobacco blend
      • Tobacco from the same crops was used to eliminate differences caused by agricultural variability
      • No flavors were added to either of the test products

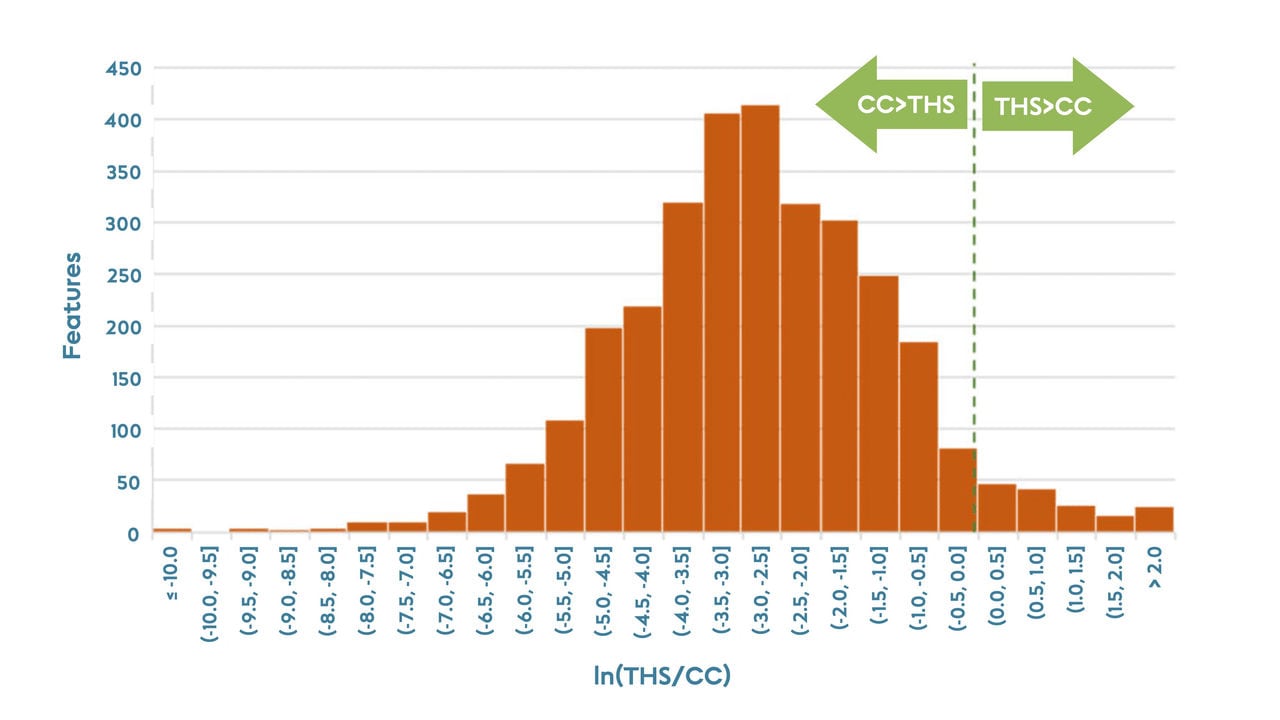

      Distribution of yield ratios of all analytical features detected in both THS and cigarettes

      Distribution of yield ratios of all analytical features (chemical signals of different masses) detected in both THS and cigarette (bar height indicates the number of features within a given logarithmic yield ratio interval).

      Using these test products, our study showed that heating a glycerol-containing substrate to the temperatures applied in THS does not introduce new compounds in comparison with cigarette smoke. Given that all major tobacco types (Burley, flue-cured, Oriental, and air-cured) were included in the tobacco blend used, the results of this study are expected to be representative for THS variants with other tobacco blends.



      Conclusions

      In these studies, we reported the first comprehensive chemical characterization of the aerosol composition of our THS, and demonstrated that the process of heating tobacco in this product does not produce new compounds compared with those found in cigarette smoke when confounding factors like different tobacco blends are removed. Our results show that the current lists of priority toxicants are also applicable to the assessment of HTPs, and that the levels of these toxicants is on average reduced as a result of heating instead of burning tobacco in THS.

      We found that some compounds were more abundant in, or were specific to, the HTP aerosol, many of which are reaction products of glycerol. These compounds could be included in specific lists for such products. However, their presence at such low levels should be evaluated in the context of the overall reduction in chemical constituents, including known HPHCs.
